EMI/RFI Shielding
PNA offers a wide range of EMI/RFI shielding materials. These materials are used to prevent radiation interference from reducing performance of electronic devices.
These EMI/RFI gaskets have outstanding physical properties, including wide-operating temperatures, high chemical, fuel and solvent resistance and a long life for critical applications.
Our EMI gaskets and seals create a conductive path through seams and other openings in an electronic enclosure. These gaskets block electrical differences across the shield surface and establish a smooth current flow. Additionally, our gasketing materials will ensure environmental protection as well as vibration resistance. EMI/RFI gaskets are fabricated to the customers’ dimensions.
Material / Product Types
- Wire Oriented in Silicone
- Conductive Elastomers
- Fabric-Over-Foam
- Shielding Tapes
- Aluminum in Fluorosilicone
- Nickel Graphite in Silicone
- Monel Wire in Silicone
- Microwave Absorbing Materials
- Knitted Wire Mesh
Applications
- Aerospace
- Communications
- Defense
- Avionics
- Automotive
- Medical
Proficiencies
Proven Knowledge
Deep engineering capabilities with expert knowledge of EMI RFI specifications
Field Proven
1,000’s of designs integrated into battle-harsh and commercially challenging environments
Proven Track Record
Orders delivered on time and to specification
Performance
From initial production design to full scale production
Continuous Improvement
Driven to maintain a zero-return rate
Collaborating
From project concept until completion
EMI/RFI shielding gaskets,
converted to print.
Conductive elastomer gaskets that create a continuous low-impedance path across every seam and opening in an electronic enclosure — blocking electromagnetic and radio-frequency interference while maintaining a full environmental seal. Cut to your dimensions on our Zünd digital floor, with the fill, base elastomer, and tolerance your program demands.
ISO 9001:2015 · ITAR Registered · MIL-DTL-83528 · Made in USA
Shielding effectiveness
to 10 GHz
Conductive particle
systems stocked
Standard dimensional
tolerance
Quote turnaround
on EMI gaskets
Engineered
shielding stack
MIL-DTL-83528
100+ dB · to 18 GHz
6 conductive systems
±0.005″ std · ±0.002″ tight
24-hour quote · no minimum
Shield and seal,
in a single gasket.
EMI/RFI materials prevent radiated interference from degrading the performance of electronic devices. PNA’s gaskets carry that shielding function and a robust environmental seal in one converted part.
Interference doesn’t respect enclosure walls — it escapes through the gaps between them.
Our EMI gaskets and seals establish a conductive path through seams and other openings in an electronic enclosure. They equalize electrical potential across the shield surface and route induced currents smoothly to ground, closing the apertures that would otherwise radiate or admit interference.
These gaskets carry outstanding physical properties — wide operating temperatures, high chemical, fuel, and solvent resistance, and a long service life for critical applications — while adding environmental protection and vibration resistance to every joint.
01
Continuous conductive path
Conductive fillers bridge mating surfaces across seams and apertures, eliminating slot antennas and leakage paths that radiate interference.
02
Environmental seal in one part
The same elastomer that shields also seals — blocking moisture, dust, and pressure differentials to MIL-grade ingress requirements.
03
Vibration & shock resilience
High resiliency and low compression set hold shielding contact under the vibration, thermal cycling, and shock of battle-harsh service.
04
Fabricated to your dimensions
Die-free Zünd cutting converts sheet, molded, and extruded stock to exact print geometry — prototype through production, no tooling cost.
The right filler
for the joint.
Shielding performance, weight, and galvanic compatibility all trace back to the conductive particle system. We stock the full range across silicone and fluorosilicone binders — the material your drawing specifies is the material we convert.
Ag-Al · MIL-DTL-83528 Type ASilicone or fluorosilicone binder110 dB to 10 GHzWorkhorse fill for general defense electronics — best balance of shielding, cost, and weight.
Ag-Cu · Type CSilicone binder120 dB to 10 GHzHighest volume conductivity for demanding RF and high-frequency shielding.
Ag-Glass · Type BSilicone binder105 dB to 10 GHzLightweight option where mass is critical — airborne and space avionics.
Ni-Gr · Type MSilicone or fluorosilicone90 dB to 10 GHzCost-effective, corrosion-resistant fill for commercial and galvanic-sensitive joints.
Ag-NiSilicone binder110 dB to 10 GHzStrong shielding with improved galvanic compatibility against aluminum housings.
AgSilicone binder120 dB to 18 GHzMaximum performance for the most stringent RF and microwave enclosures.
Shielding effectiveness values are representative of conductive elastomer systems per modified MIL-DTL-83528 test method and vary with frequency, joint design, and compression. Send your specification — we’ll confirm the fill and performance against your enclosure.
Every gasket form,
one supplier.
From flat die-cut windows to molded connector seals and dispensed beads — we convert EMI shielding into the form your enclosure was designed around.
01 / 04
Die-cut & converted
Conductive sheet stock converted to flat gaskets, flange profiles, and EMI windows on our Zünd digital cutter. No die cost, rapid revisions, tight nesting for material yield.
Zünd knife · kiss · score
02 / 04
Molded shapes
Custom cross-sections — O, D, P, rectangular, and hollow profiles — molded in conductive silicone or fluorosilicone for connector seals and enclosure perimeters.
O · D · P · custom
03 / 04
Extruded profiles
Continuous conductive extrusions cut and spliced into gasket frames for cabinet doors, shelters, and large enclosure perimeters where molding is impractical.
Vulcanized corners
04 / 04
Form-in-place (FIP)
Dispensed conductive bead applied directly to complex 3D housings — ideal for cast aluminum enclosures with tight real estate and intricate geometry.
Robotic dispense
Performance,
to MIL-SPEC.
Published capability across EMI/RFI conductive elastomer gaskets. Shielding effectiveness, resistivity, and environmental performance trace to MIL-DTL-83528 and are verified against your joint design and frequency band.
Outside these ranges?
We regularly deliver
custom shielding
beyond standard spec.
Send your print and frequency requirement. If we can convert it, we’ll quote it.
Where our shielding
ships.
PNA EMI gaskets seal and shield enclosures across programs where signal integrity and survivability are not optional — from battle-harsh defense electronics to commercial 5G infrastructure.
01 / 06
Defense Electronics
- Electronic warfare & jammer housings
- Radar module EMI seals
- Tactical radio shielding
- C4ISR enclosures
02 / 06
Aerospace & Avionics
- Avionics LRU flange gaskets
- Cockpit display housings
- Engine control unit seals
- Cabin electronics enclosures
03 / 06
Space & Satellite
- Phased-array antenna gaskets
- Launch vehicle avionics
- CubeSat enclosures
- Ground satcom terminals
04 / 06
Uncrewed Systems
- Flight computer EMI gaskets
- Telemetry & C2 radio enclosures
- Sensor payload sealing
- Datalink modules
05 / 06
EV & Automotive
- BMS enclosure gaskets
- Motor controller EMI shielding
- Charge port sealing
- Inverter housings
06 / 06
Telecom & 5G
- RF enclosure shielding
- 5G base station gaskets
- Microwave backhaul
- Filter & amplifier housings
Proficiencies
& performance.
Deep engineering capability, materials in stock, and a quality system built around defense and aerospace compliance from day one.
Field proven
Thousands of designs integrated into battle-harsh and commercially challenging environments — shielding that holds up where it counts.
Proven track record
Orders delivered on time and to specification, from initial production design through full-scale production runs.
Continuous improvement
Driven to maintain a zero-return rate. Every lot is inspection-closed before it leaves the floor.
Deep engineering
Expert knowledge of EMI/RFI specifications, collaborating from project concept through completion.
More from the
PNA capability set.
EMI shielding is one family on a single CAD-driven production floor. Explore the rest of what we convert.
01 / 06

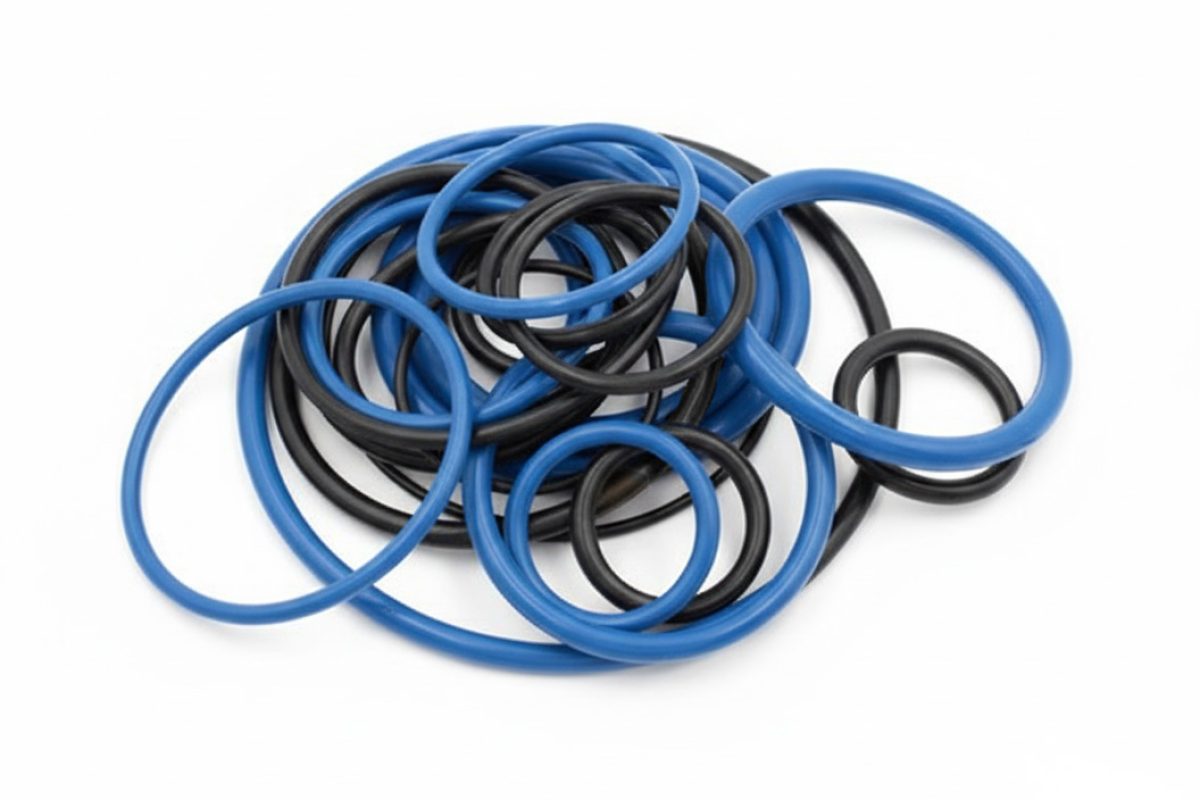

Electrically conductive elastomer O-rings for EMI shielding in threaded and flanged enclosures.
02 / 06
Gap pads, phase-change, and adhesive TIMs that dissipate heat and conform to uneven surfaces.
03 / 06
Conductive elastomer flange gaskets for avionics LRU sealing, radar modules, and enclosure joints.
04 / 06
High-performance environmental gaskets converted from silicone, EPDM, Viton, and neoprene grades.
05 / 06
Dielectric components cut from Nomex, Mylar, and Kapton for battery packs and HV enclosures.
06 / 06
Tier-one stocking relationships across the leading EMI, thermal, and sealing material manufacturers.
Send us your EMI
drawing. Quotes in 24 hours.
Include quantity, conductive fill (or shielding requirement), tolerance, and target delivery date. We’ll respond within 24 business hours with feasibility, lead time, and price.
DXF · DWG · STEP · IGES · PDF · AI
